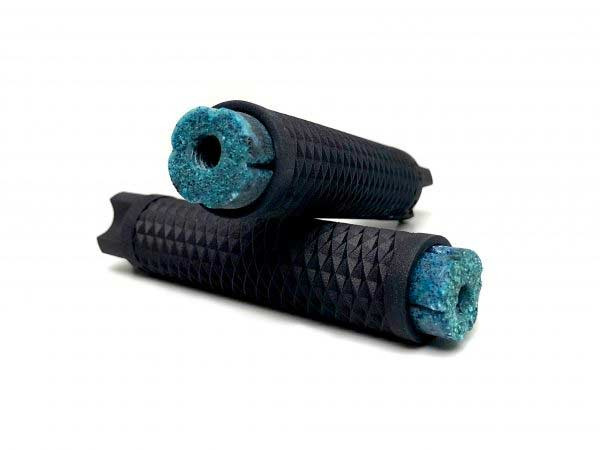

Battle Sight Tech - CrayTac Infrared Writing Tool

Battle Sight Tech - CrayTac Infrared Writing Tool

Allows operators to covertly write messages and make marks on walls and all hard surfaces that are only visible through Night Vision Goggles (NVGs)

Lightweight, easy to carry, and simple to use, CrayTac® is the world’s only reusable infrared writing appliance. The CrayTac® writing device is a pressure-activated chemiluminescence writing instrument that enhances communication in low-light and no-light conditions with the capability to be invisible to the enemy. CrayTac® allows for limitless applications of specific messages through covert signaling. It provides a reduction in overall cost by reducing waste by 99.9%.

FEATURES
Ideal for clearing locations, breadcrumbing into buildings, close quarters
battle, tagging, tracking and locating. CrayTac® allows operators wearing
NVGs to write on walls and surfaces in an “infrared ink” visible only to other
team members with NVGs. CrayTac® allows for dynamic team messaging
and ensures effective communication between warfighters yet remains
invisible to the enemy.

• Specific messaging on any hard surface (concrete, wood, glass and metal)
• Invisible to the naked eye, visible through all type II and III NVG systems
• 90 minute duration once applied
• Functional equivalent to 1,000 chemlights
• 2,000 linear feet of writing capability

Benefits

• 7 seconds saved (a lifetime in a firefight)
• 95% cost savings
• 99.9% weight reduction
• 99% less waste

PHYSICAL PROPERTIES
OPTICAL
IR Wavelength Near IR (700-850nm)
NVG Compatibility All generation II and III night vision systems
Standard Duration Writing visible for 6 hours (adjustable)

MECHANICAL
Height 117.5 mm (4.625 Inches)
Width 25.4 mm (1 Inch)
Weight 50 Grams (1.76 ounces)
Tensile Strength (Applicator) 7,251 PSI
Surface Tactical Texturizing
Operation Dial at bottom advances/retracts product

ENVIRONMENTAL
Immersion Underwater-operable; fresh and saltwater
Operating Temperature -17c to 70c (based on wax configuration)
