FRICTION BATONS (16", 21" or 26")

On the street, there can be no tolerance for second best. It is here that the nation's most respected and tactically advanced law enforcement agencies trust their safety to ASP Friction Batons. An intermediate force system of uncompromising quality from a firm with a long tradition of agency service.

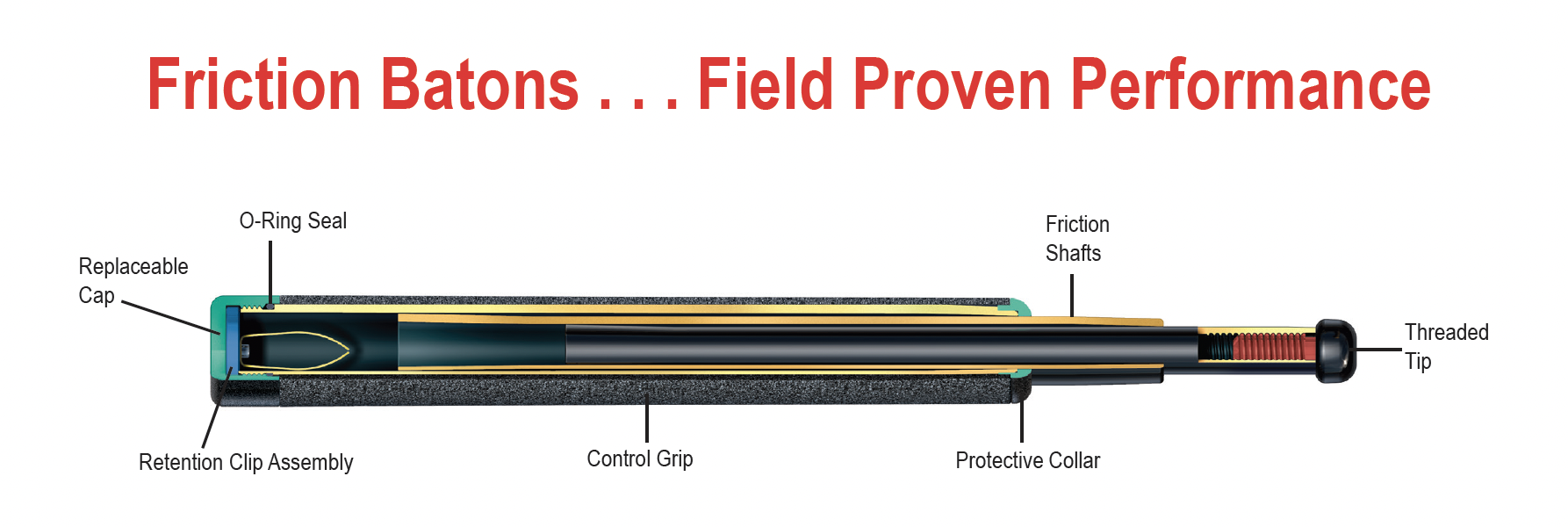

Friction Batons expand by sharply flicking the baton straight up or straight down to extend the inner shafts. Each shaft is locked rigidly in place by a precision Friction taper. To retract the baton, strike the tip of the baton sharply downward on a hard surface, such as concrete.

Foam, Duratec and Wavemaster grips are available. Airweight shafts offer 45% weight reduction with 98% of the striking potential of steel. Black Chrome provides the most durable and corrosion resistant black baton finish. Electroless is the most corrosion resistant finish. It is well suited to high humidity environments.

SPECIFICATIONS

16" Batons

Retracted Length: 6.20"
Weight (Steel): 13.3 ounces
Weight (Airweight): 7.3 ounces
4140 Steel
7075 T6 aluminum middle shaft (Airweight model only)

21" Batons

Retracted Length: 7.70"
Weight (Steel): 16.3 ounces
Weight (Airweight): 8.9 ounces
4140 Steel
7075 T6 aluminum middle shaft (Airweight model only)

26" Batons

Retracted Length: 9.50"
Weight (Steel): 20 ounces
Weight (Airweight): 11.2 ounces
4140 Steel
7075 T6 aluminum middle shaft (Airweight model only)

----------------------------------------------------------------------

Steel Tubing

4140

49+ RC

238,000 PSI Tensile

215,000 PSI Yield

Aluminum Tubing

7075 T6

87 RB

83,000 PSI Tensile

73,000 PSI Yield

Shafts

Airweight (A)

Black Chrome (B)

Electroless (E)

Locking

Hardened

Dead lock taper

Tip

Forged Roll formed threads

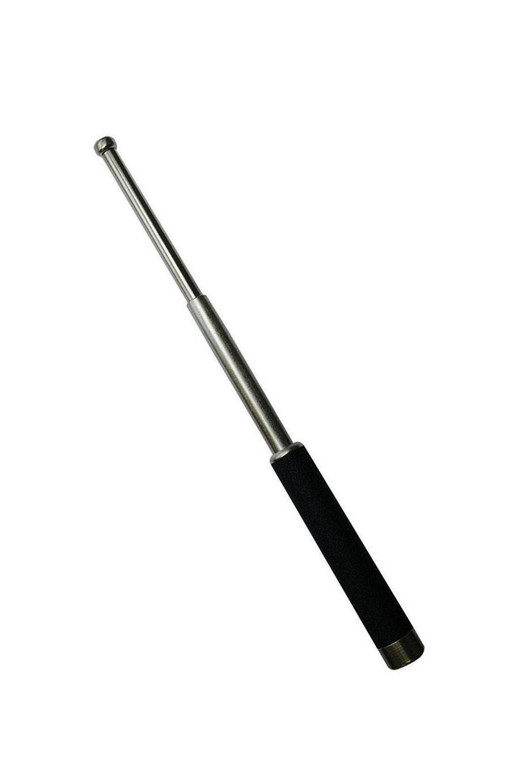

ASP Friction Loc Baton
